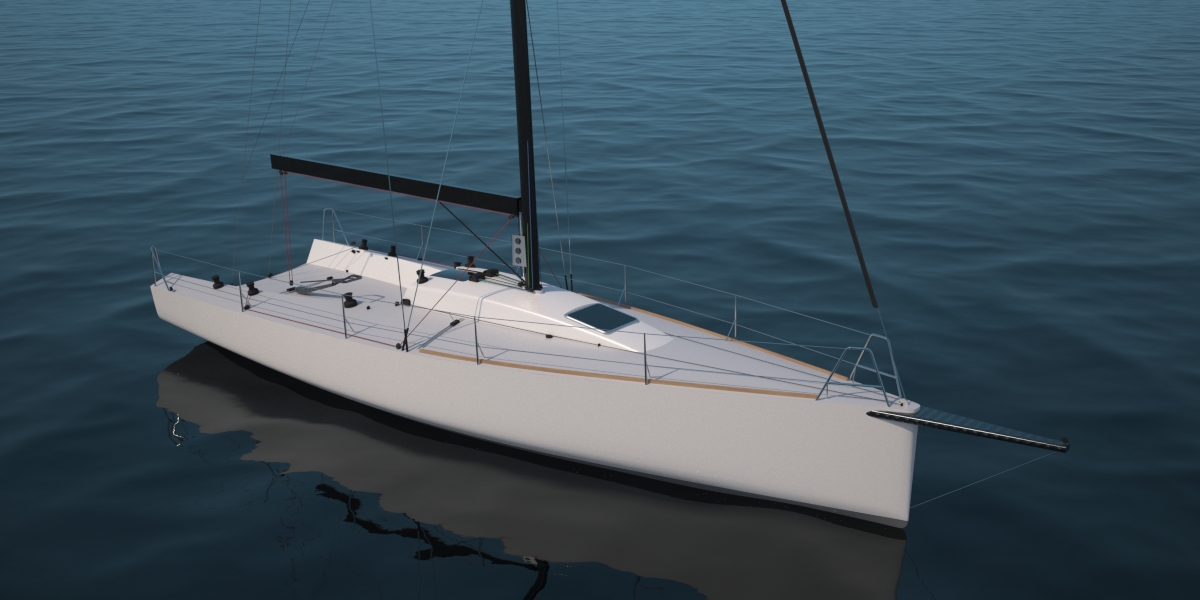

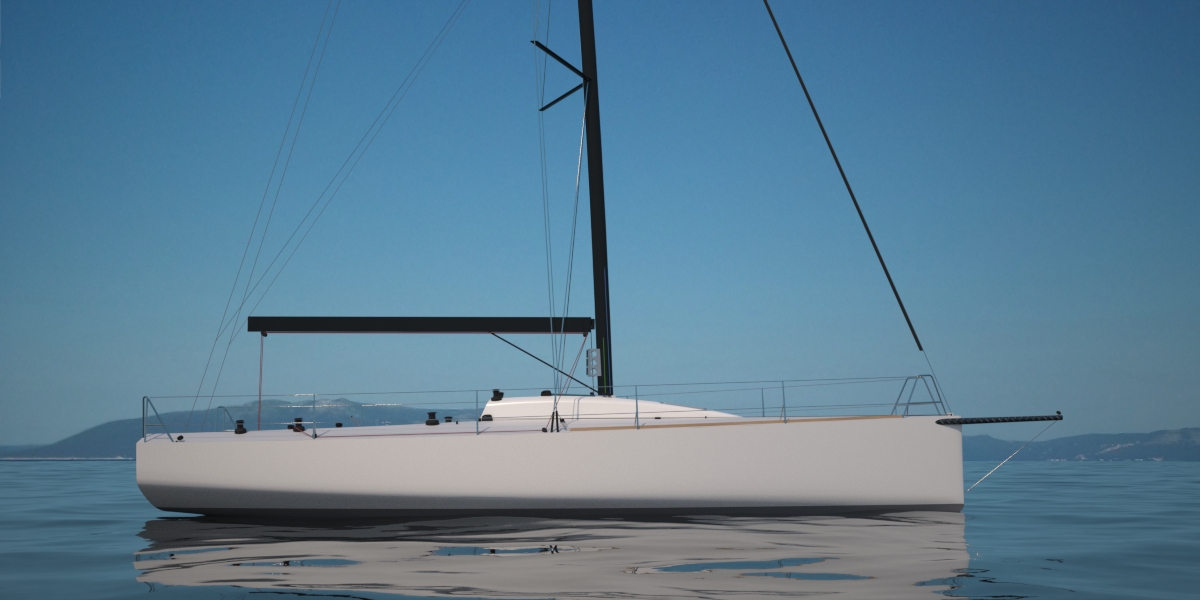

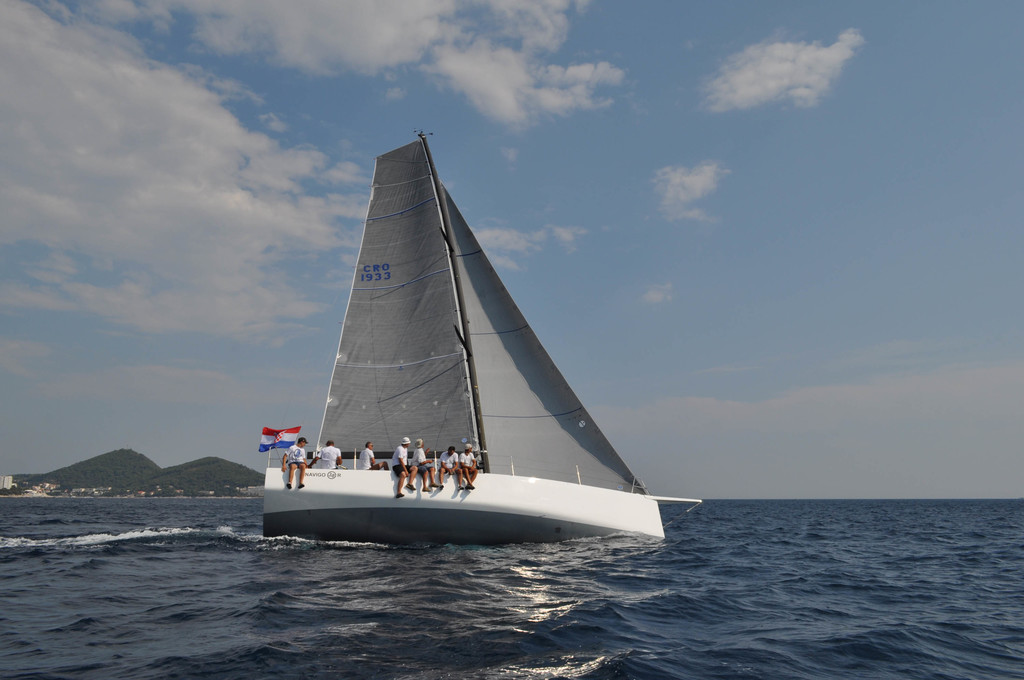

Enavigo 38 Racer

Designer: Justin Andrej

The Ultimate Offshore Racer

  • high performance CFD and VPP optimised
  • heavy duty built according to ISO 12 215 Category A with FEA structural optimisation
  • oversized equipment all the hardware selected to MR standards
Hull length
11.60 m
Bmax
3.50 m
Displacement
3.765 t
Keel
1.850 t
Draft
2.600 m
Waterline Length
11.530 m

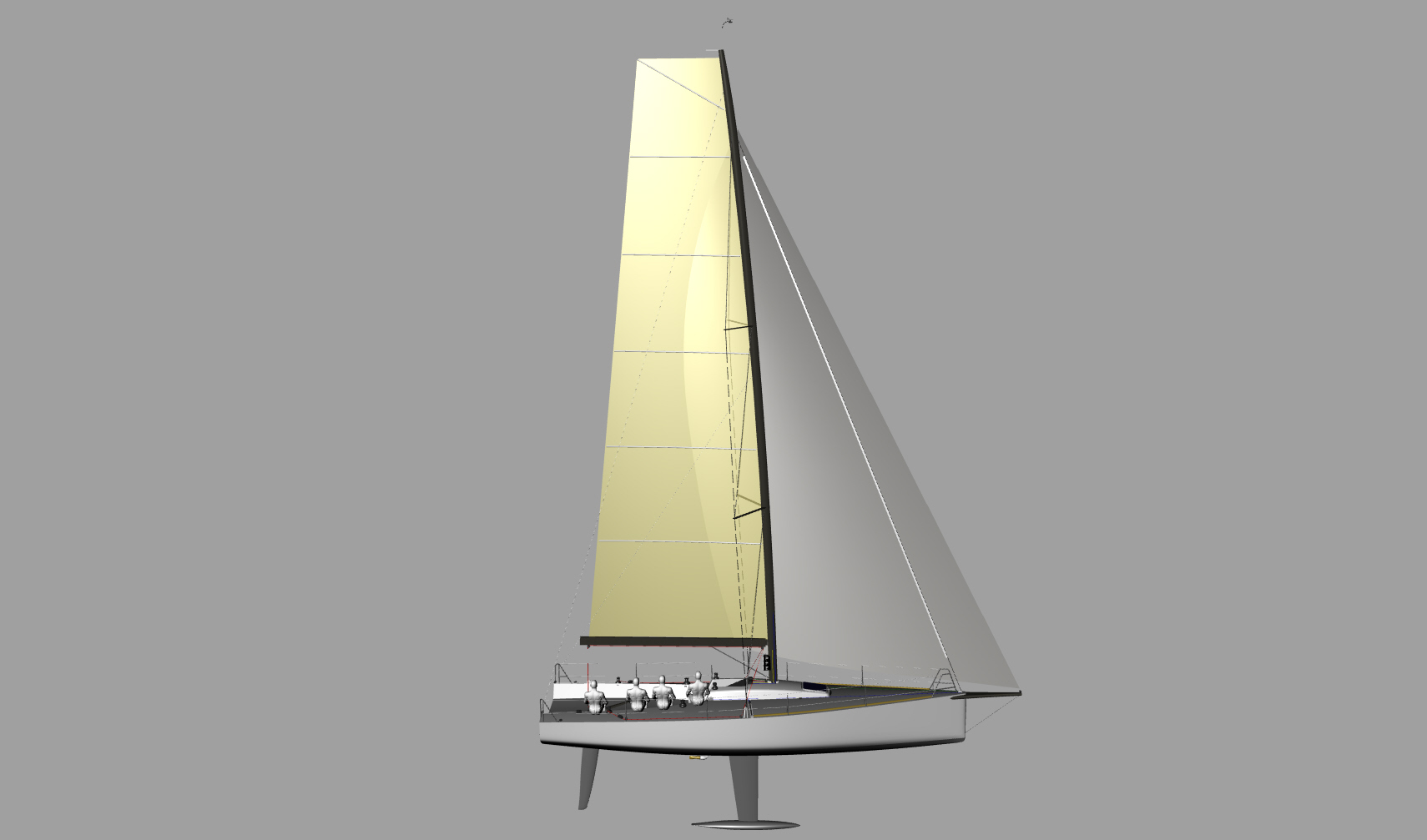

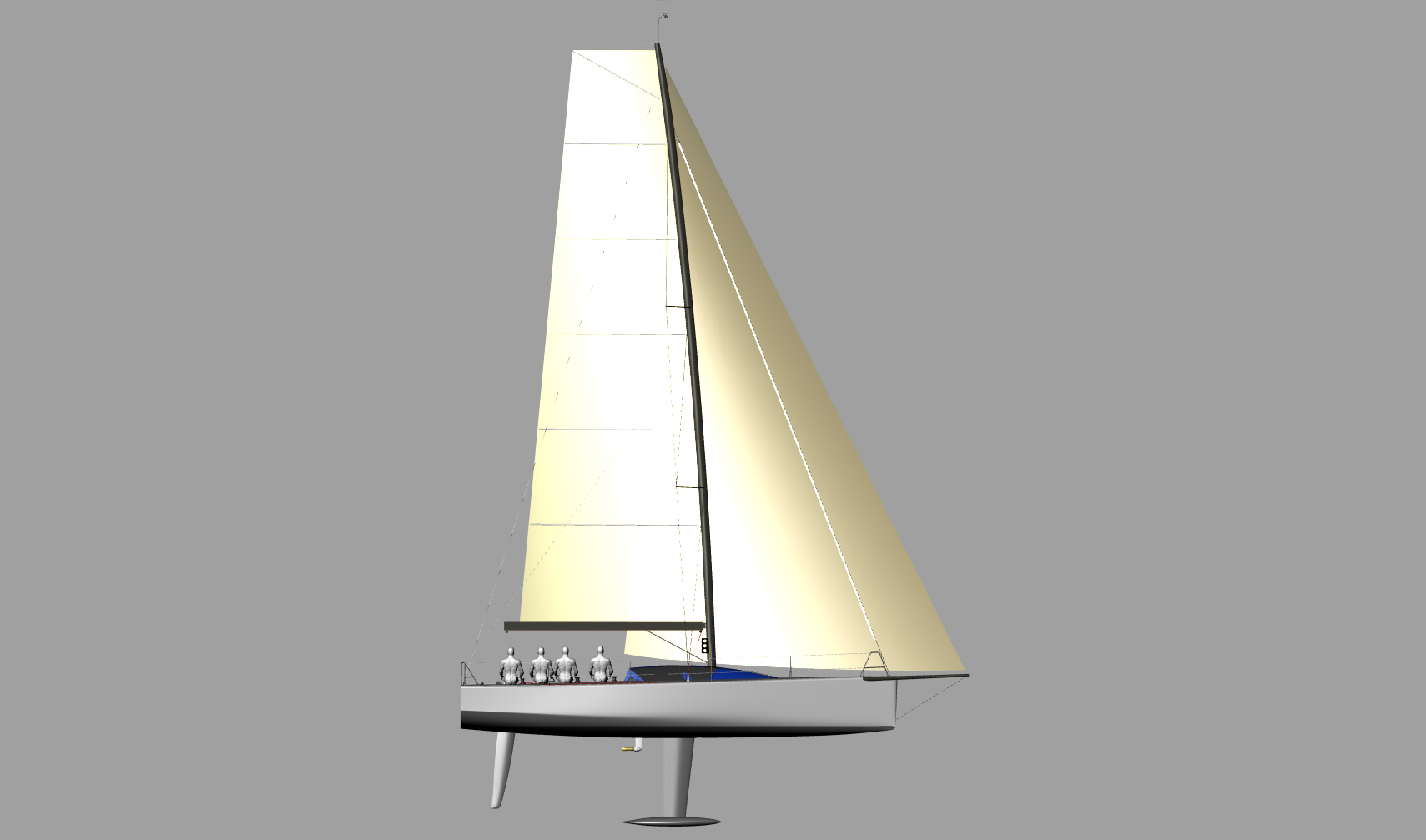

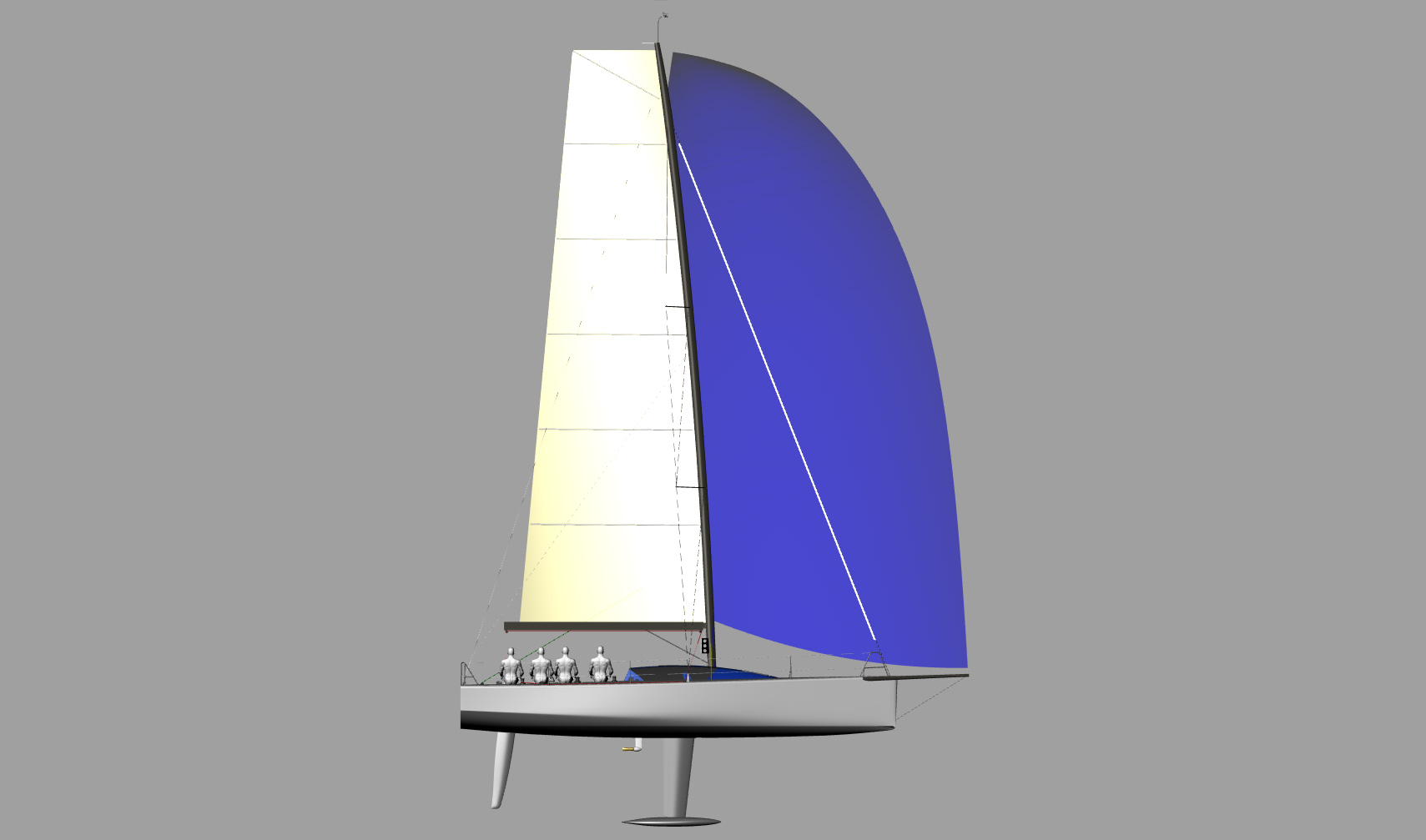

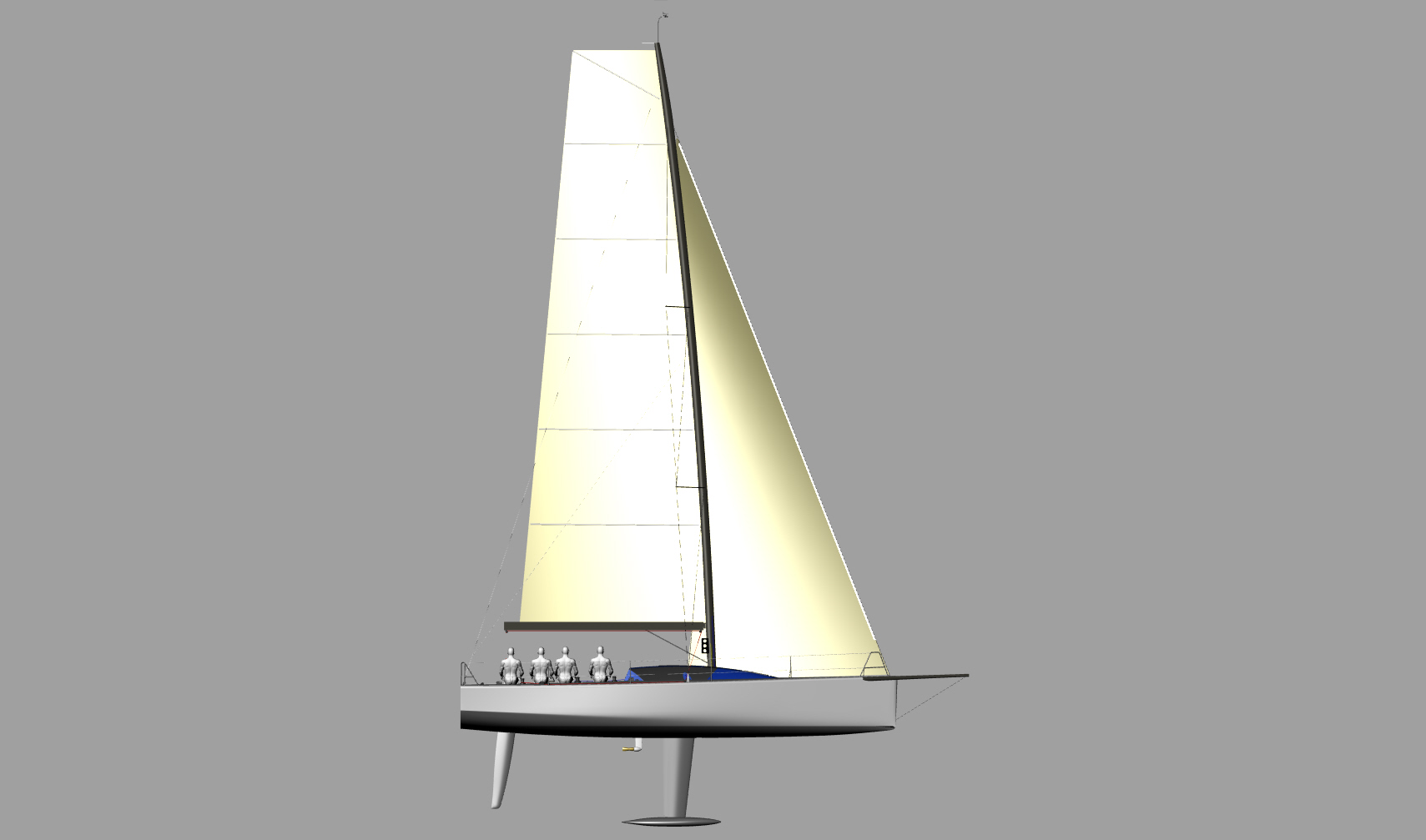

Sails

Main
58.50 m²
Jib
44.40 m²
Spinnaker
140,00 m²
FR0
80,00 m²
C0
78,00 m²
I
15,06 m
J
5,05 m
P
15,80 m
E
4,95 m

Brochure

Concept

The boat is designed for the sailor who puts excellence first and knows that quality and quantity are two very different properties. We gathered all our resources to build the ultimate Club Racer.

The hull is the result of extensive CFD and VPP studies. The moderate beam and narrow static waterlines optimise upwind and downwind performance, whilst the rounded chine extending forward to the bow, the balanced volume distribution and high prismatic coefficent through all heel angles give the boat:

  • ease of handling
  • a comfortable dry ride in rougher seas
  • exceptional offshore and reaching speed potential.

The light and stiff high tech boat structures are designed according to ISO 12 215 Category A and have been FEA optimized. High aspect ratio appendages and high ballast/displacement ratio combined with a generous sailplan and a light but easy to handle stable rig further boost the seaworthiness and performance of the yacht.

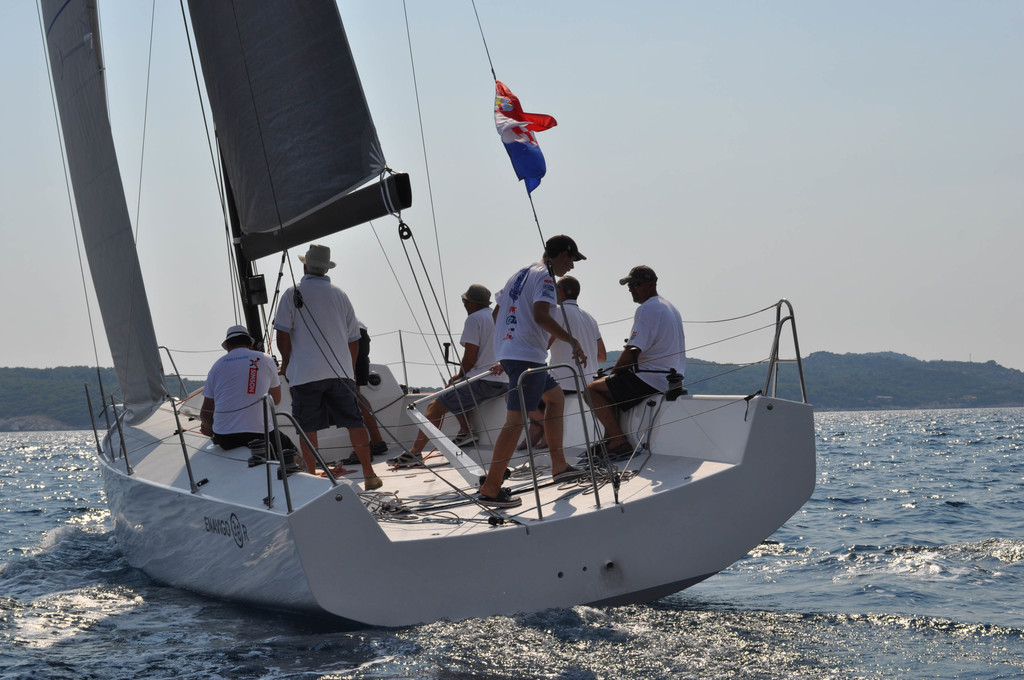

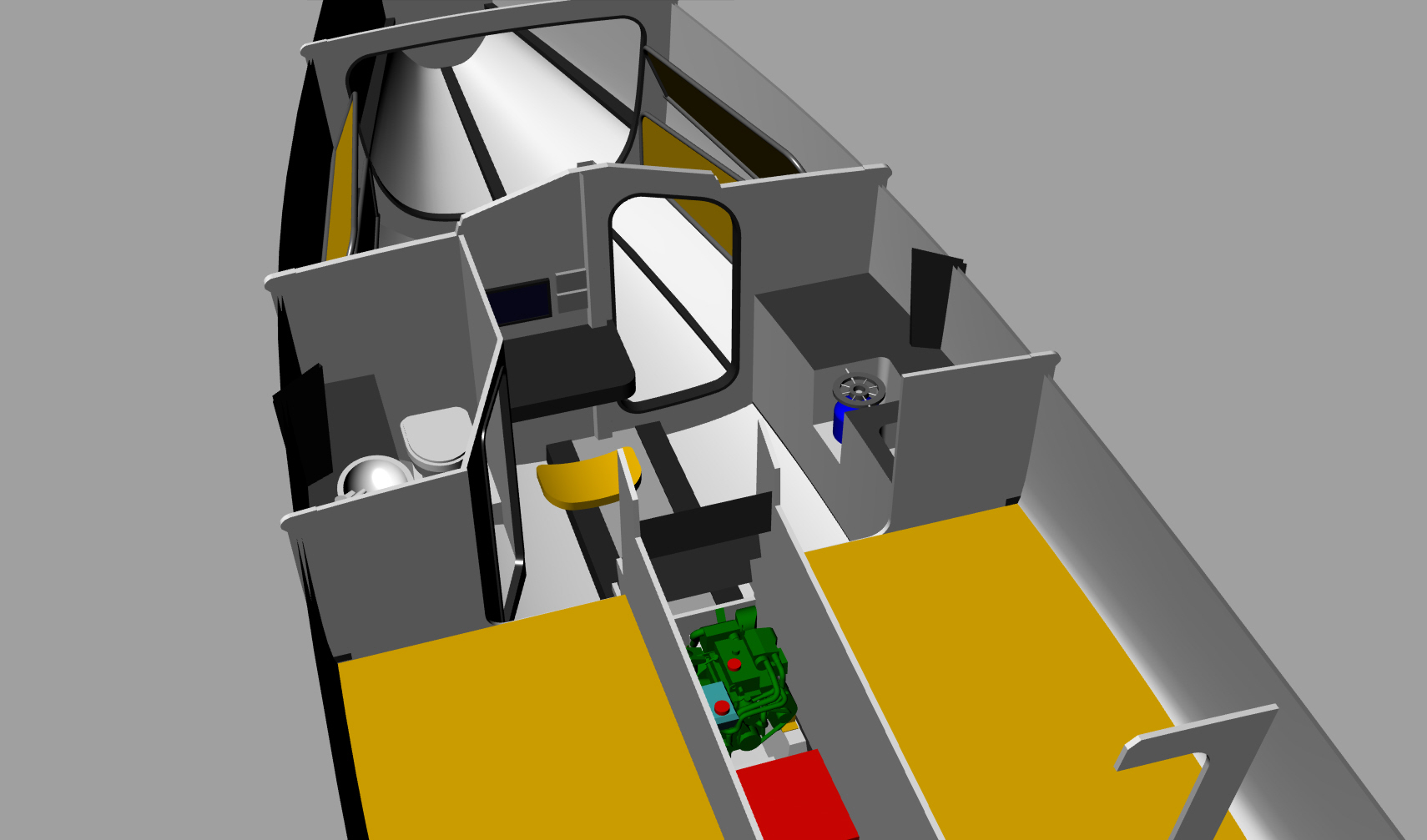

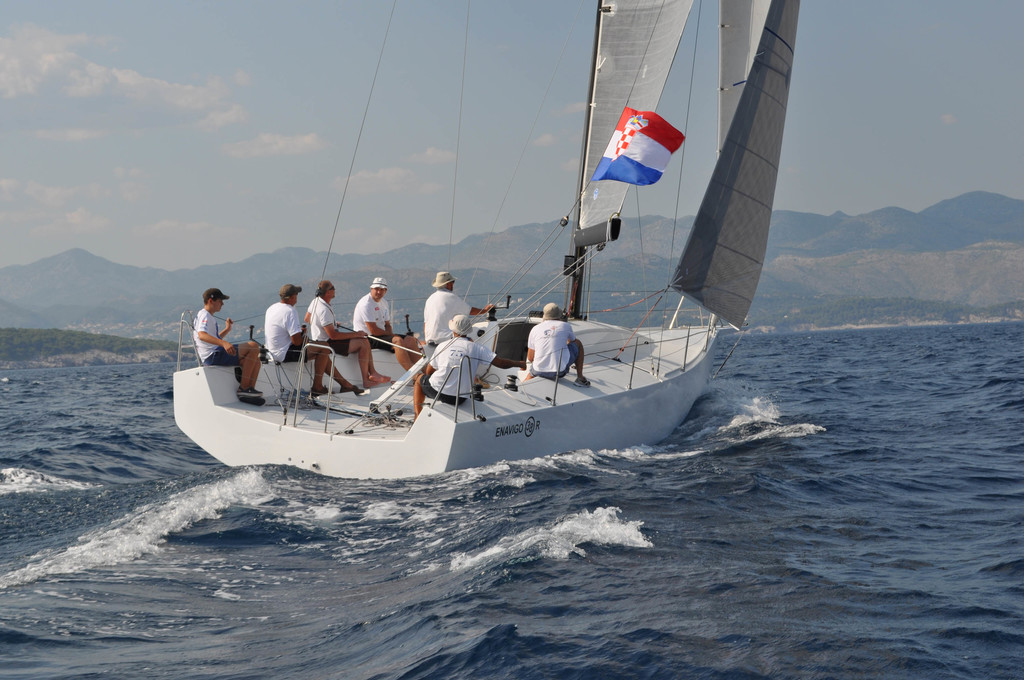

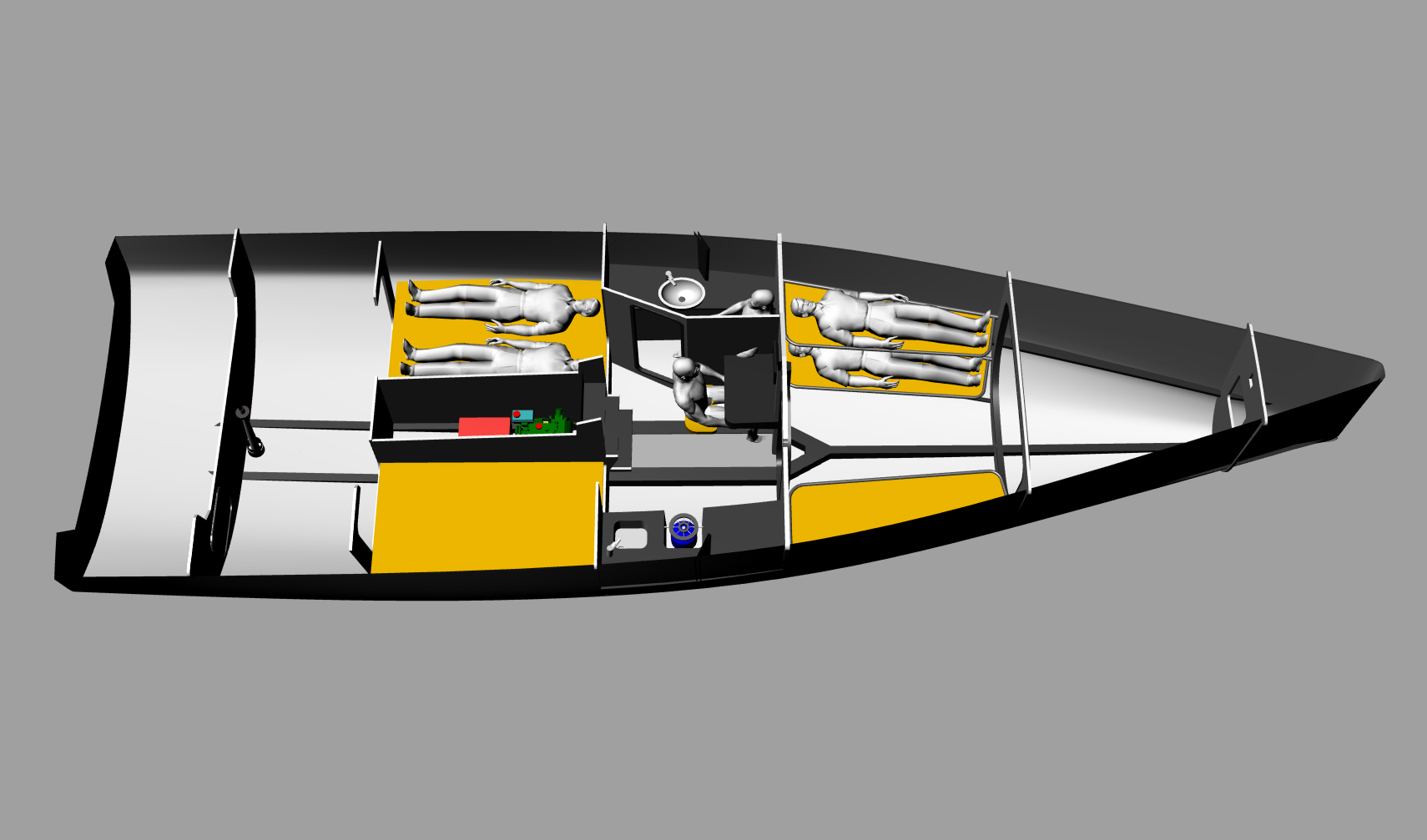

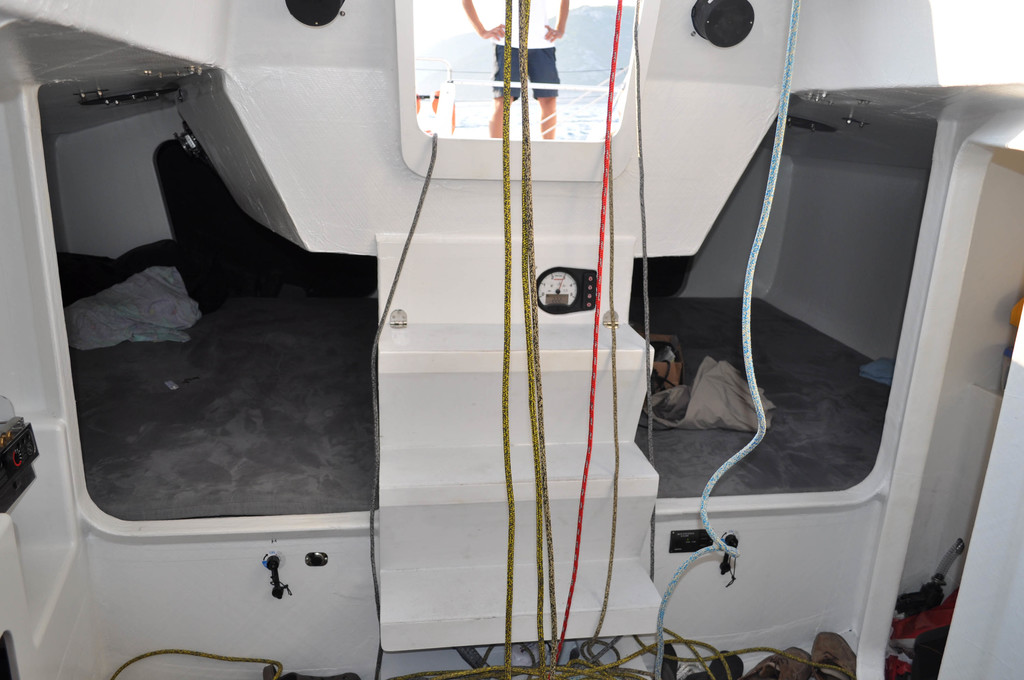

Below deck she accomodates a sporty crew of eight, four of whom sleep on pipe berths. The XL bath gives the crew big boat comfort on offshore races. The essential galley is equipped with a large fridge and food storage capabilities. A dedicated large, well equipped navigation station is given prime position directly accessible to crew members.

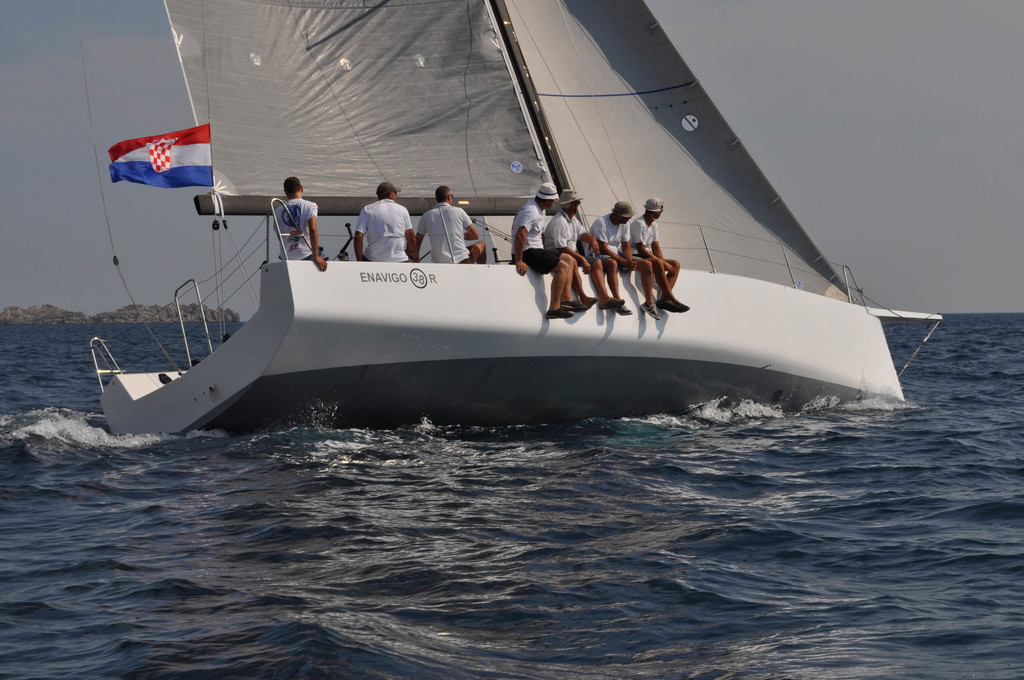

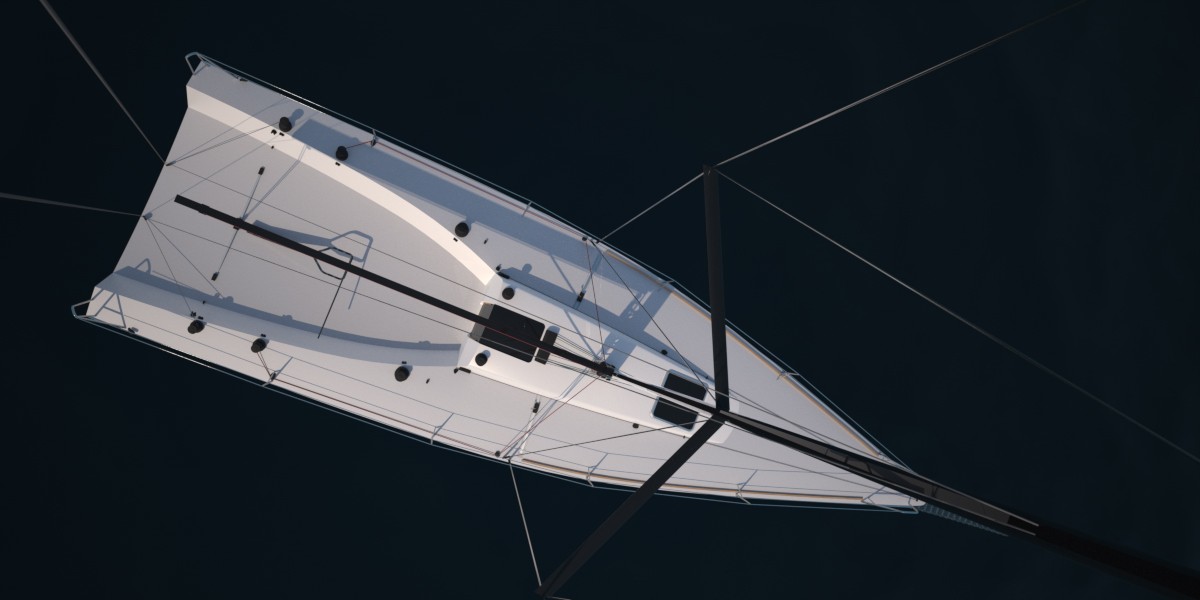

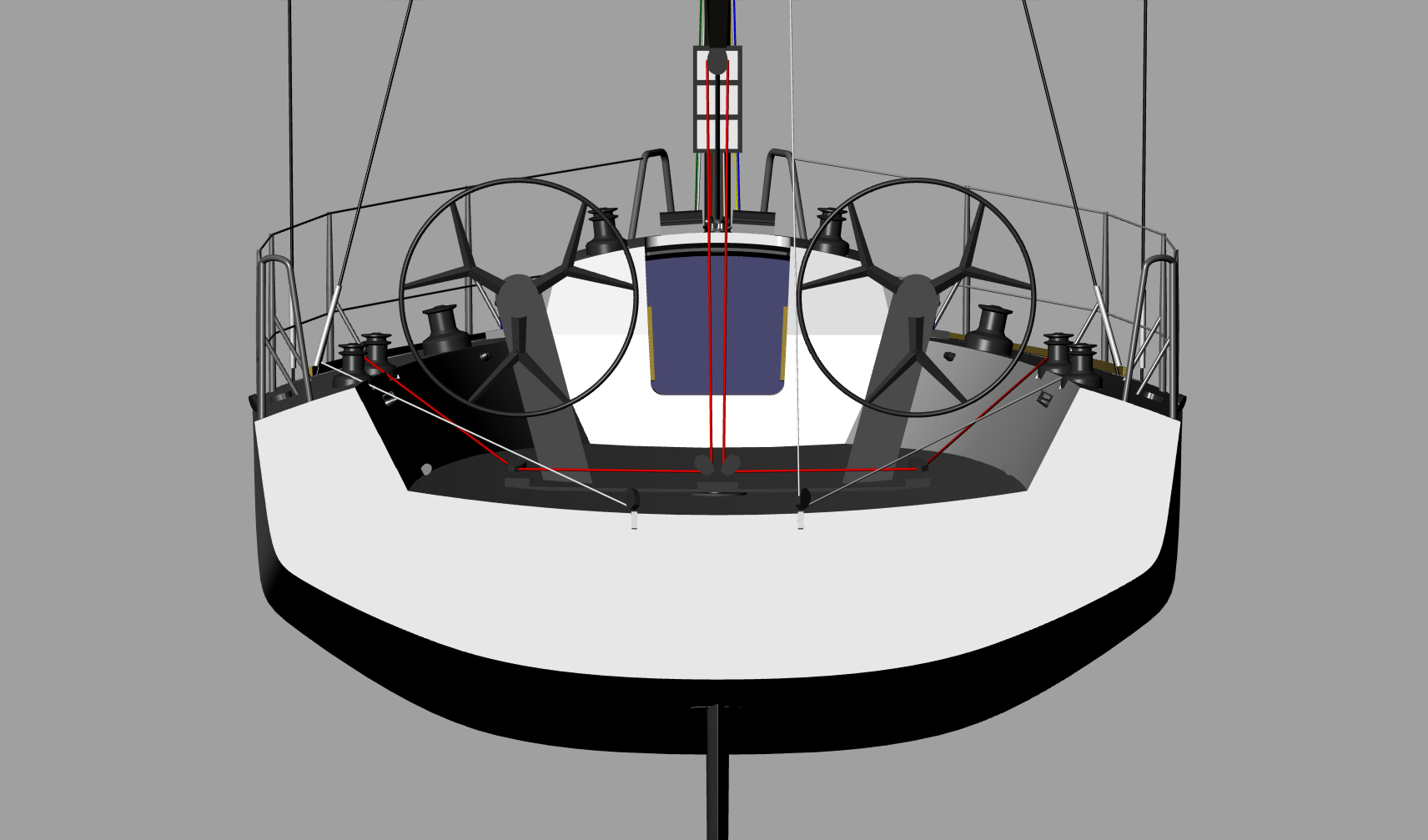

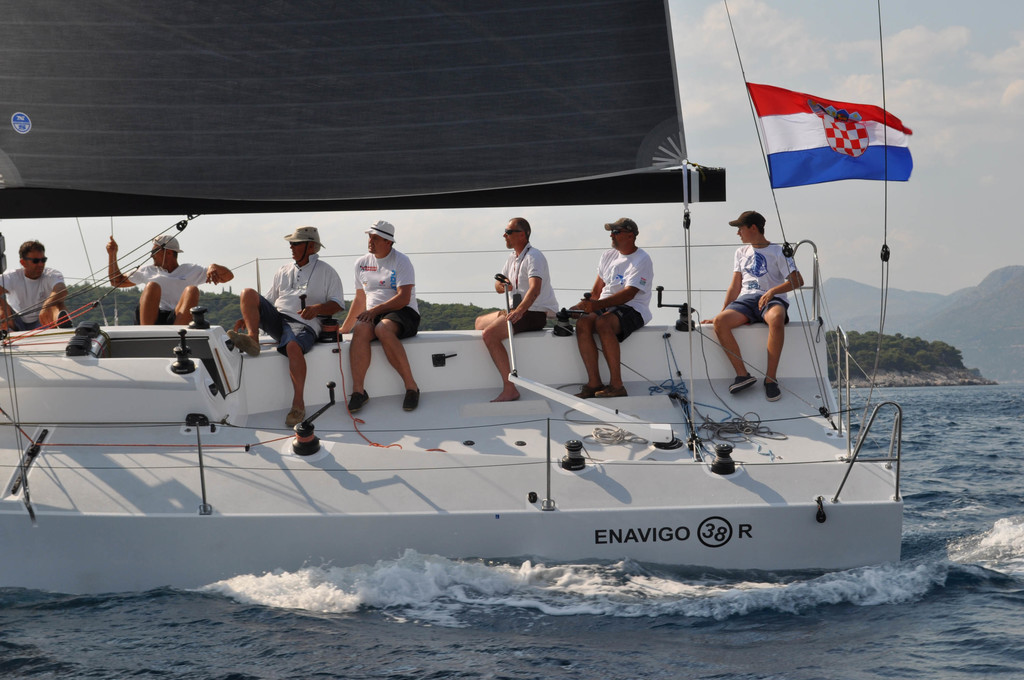

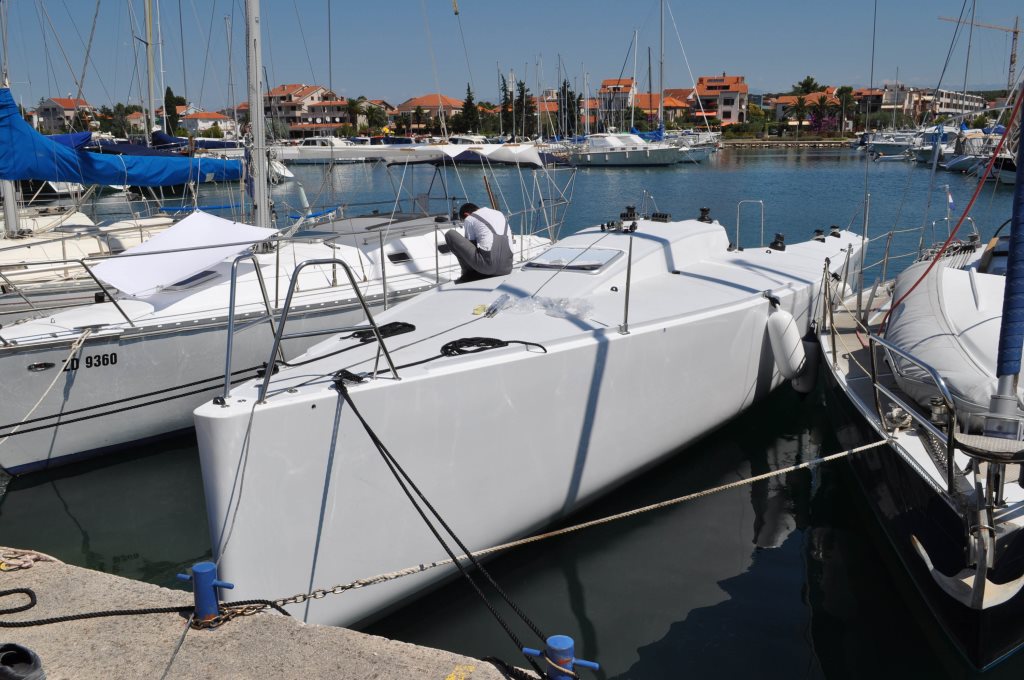

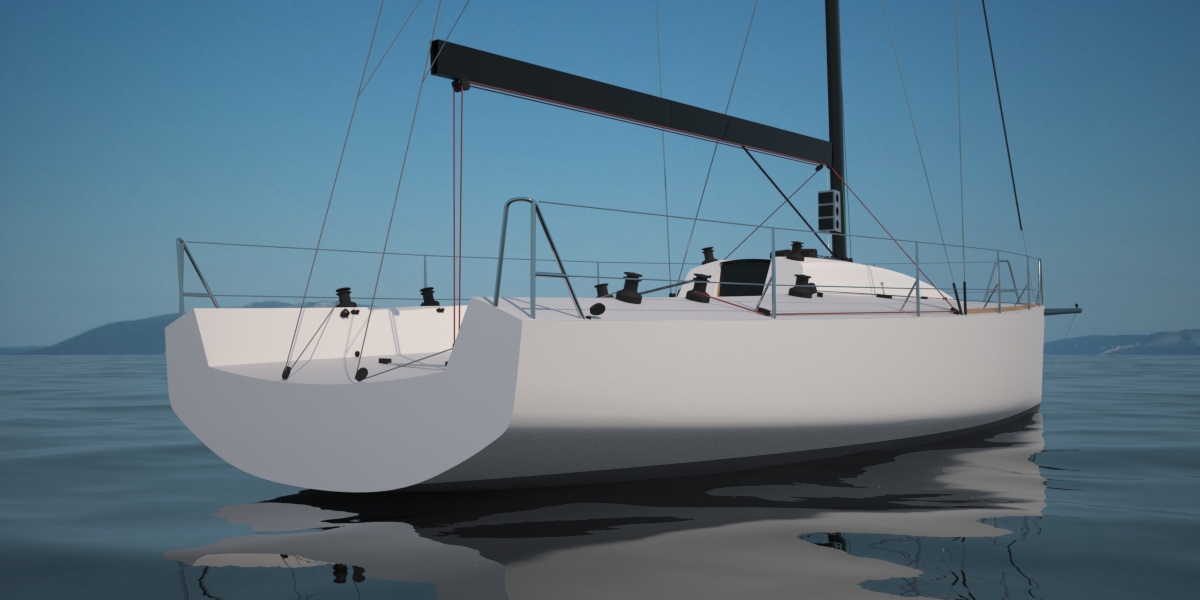

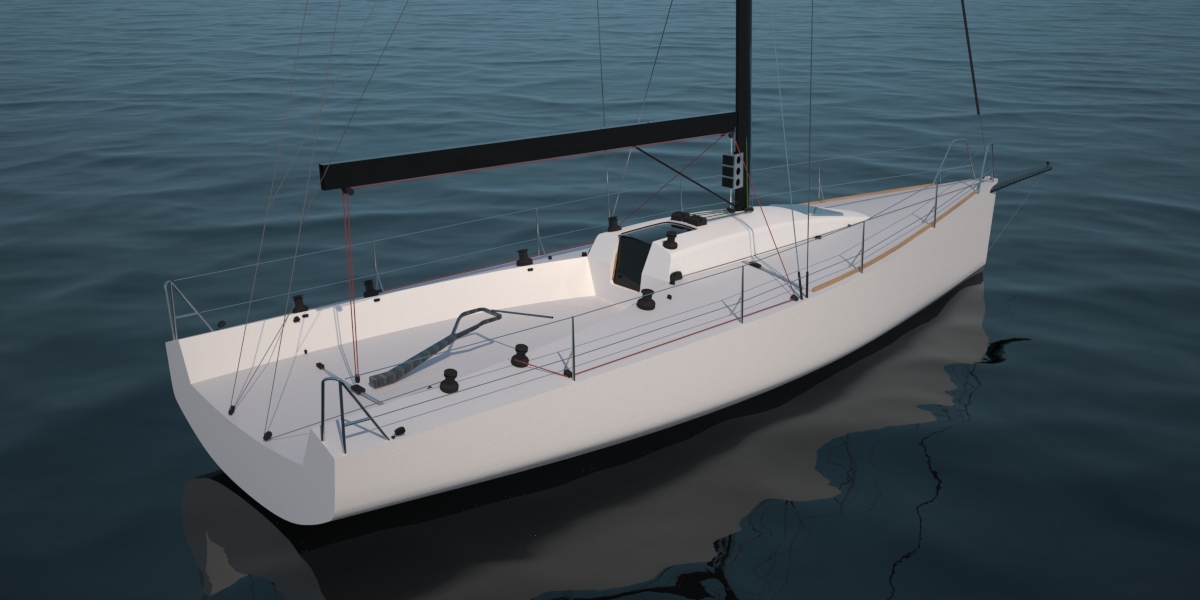

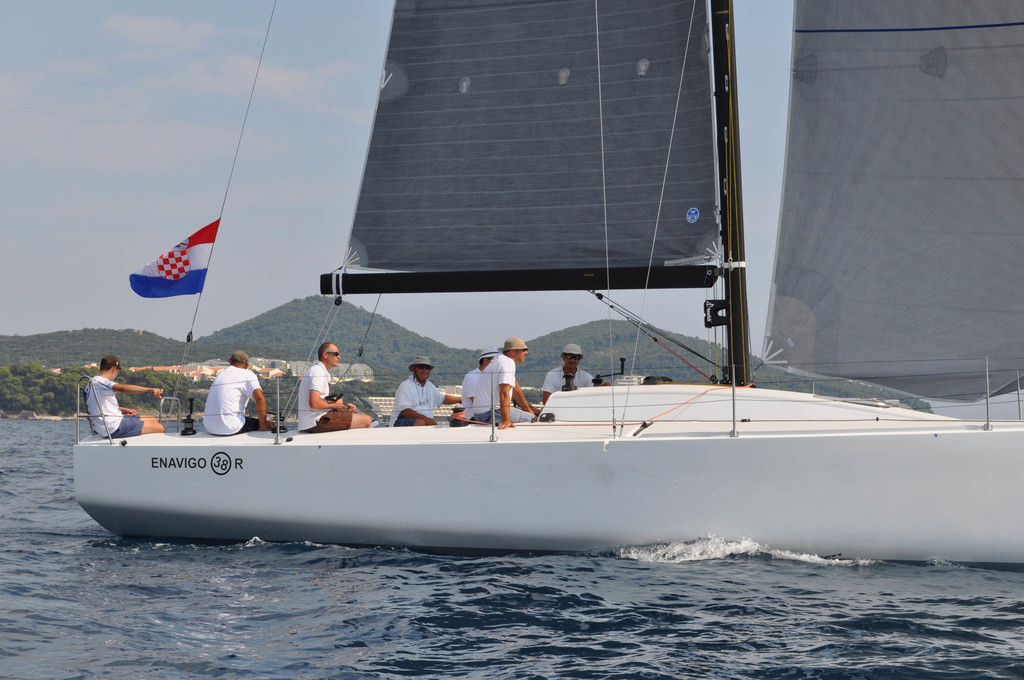

On deck the large cockpit, wide side decks and minimalistic deckhouse give the boat the GP racer look. This is emphasised by the oversized high quality and ergonomicaly positioned deck hardware which enable both a shorthanded crew and a full racing crew to achieve the boats maximum potential with ease and in safety.

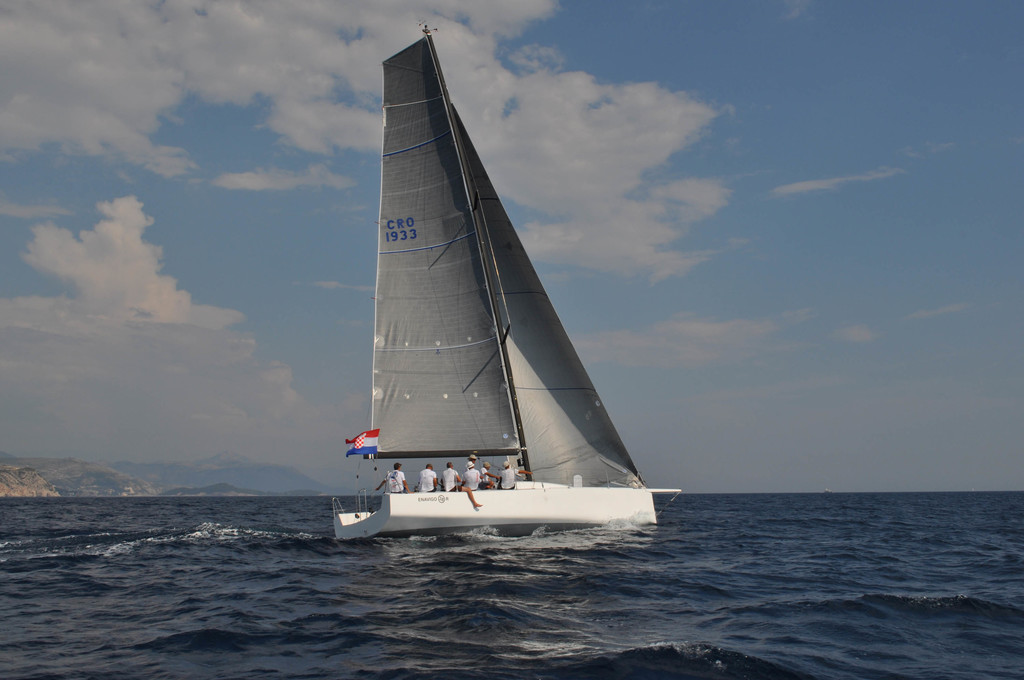

Performance

Optimum Upwind Numbers for Ops_Upwind - Main+Jib
TWS TWA Vs Vmg Heel Reef/Twist Flat AWS AWA
4.0 45.5 4.542 3.184 4.5 1.000 1.000 7.88 21.2
5.0 44.2 5.443 3.900 7.0 1.000 1.000 9.66 21.0
6.0 43.5 6.214 4.510 10.0 1.000 1.000 11.32 21.0
7.0 41.0 6.625 4.997 13.6 1.000 1.000 12.70 20.5
8.0 39.2 6.870 5.322 15.9 1.000 0.916 13.91 20.4
9.0 38.2 7.090 5.571 17.3 1.000 0.819 15.09 20.5
10.0 37.4 7.257 5.768 18.4 1.000 0.734 16.21 20.7
12.0 35.7 7.441 6.044 19.8 1.000 0.598 18.34 20.9
14.0 34.8 7.569 6.217 20.2 0.950 0.558 20.40 21.4
16.0 34.4 7.684 6.343 20.3 0.881 0.563 22.45 22.0
20.0 34.3 7.883 6.508 20.4 0.769 0.574 26.47 23.4
25.0 35.1 8.081 6.612 20.7 0.666 0.591 31.39 25.2
30.0 36.3 8.239 6.639 21.1 0.589 0.609 36.21 27.0
35.0 37.8 8.358 6.605 21.6 0.528 0.627 40.92 28.9
Optimum Downwind Numbers for Ops_Down - Main+A1,5
TWS TWA Vs Vmg Heel Reef/Twist Flat AWS AWA
4.0 135.1 4.680 -3.315 1.4 1.000 1.000 3.37 56.8
5.0 136.8 5.602 -4.081 1.8 1.000 1.000 3.95 60.2
6.0 138.0 6.426 -4.776 2.2 1.000 1.000 4.47 63.9
7.0 141.2 6.880 -5.364 2.2 1.000 1.000 4.61 72.0
8.0 143.1 7.351 -5.877 2.3 1.000 1.000 4.90 78.7
9.0 146.5 7.594 -6.334 2.1 1.000 1.000 4.96 89.0
10.0 149.5 7.829 -6.746 2.0 1.000 1.000 5.13 98.8
12.0 150.1 8.684 -7.528 2.6 1.000 1.000 6.22 106.0
14.0 148.0 9.808 -8.316 4.0 1.000 1.000 7.68 105.5
16.0 141.1 12.169 -9.475 8.6 1.000 1.000 9.92 91.6
20.0 144.0 15.086 -12.209 11.9 1.000 1.000 11.52 95.3
25.0 149.1 18.124 -15.559 13.4 1.000 1.000 12.86 104.8
30.0 153.2 21.009 -18.749 14.7 1.000 1.000 14.23 113.5
35.0 156.2 23.854 -21.823 16.2 1.000 1.000 15.73 120.7

Construction

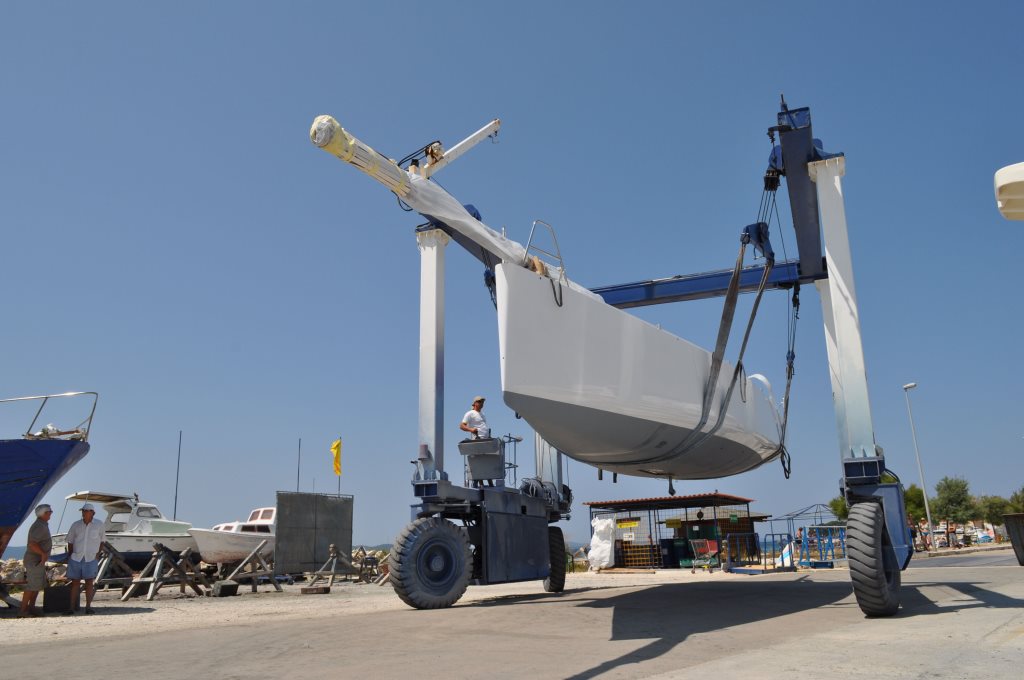

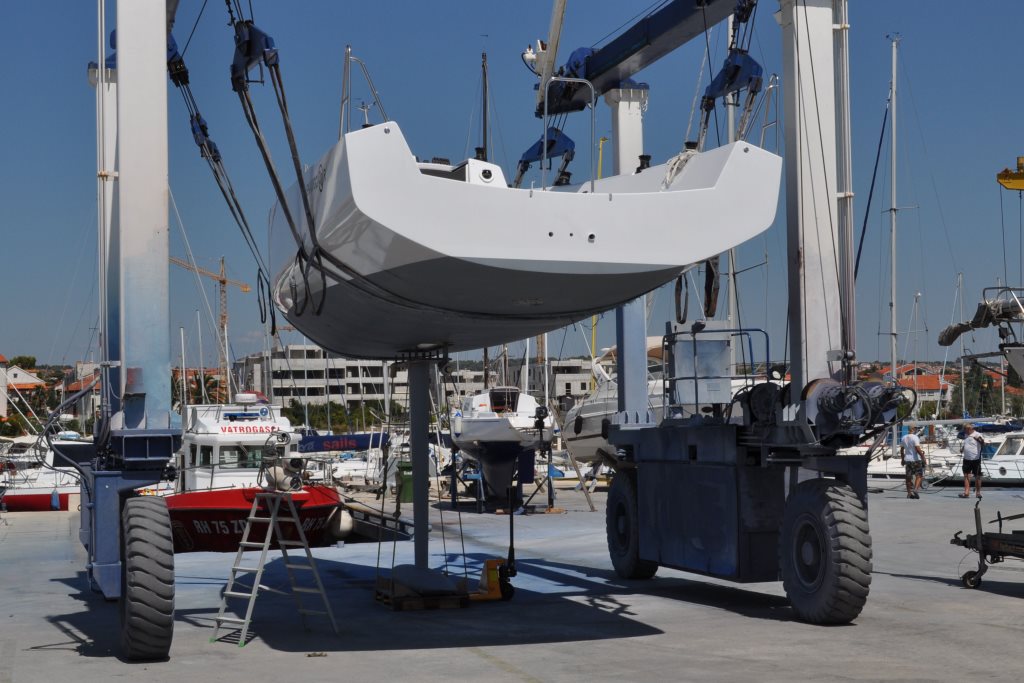

Hull

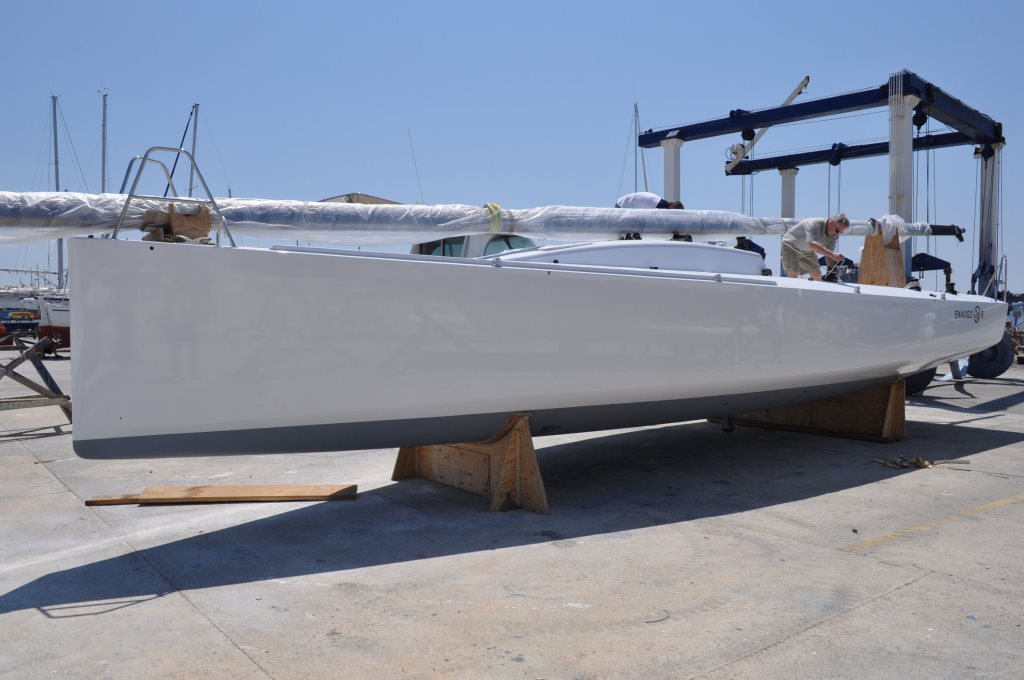

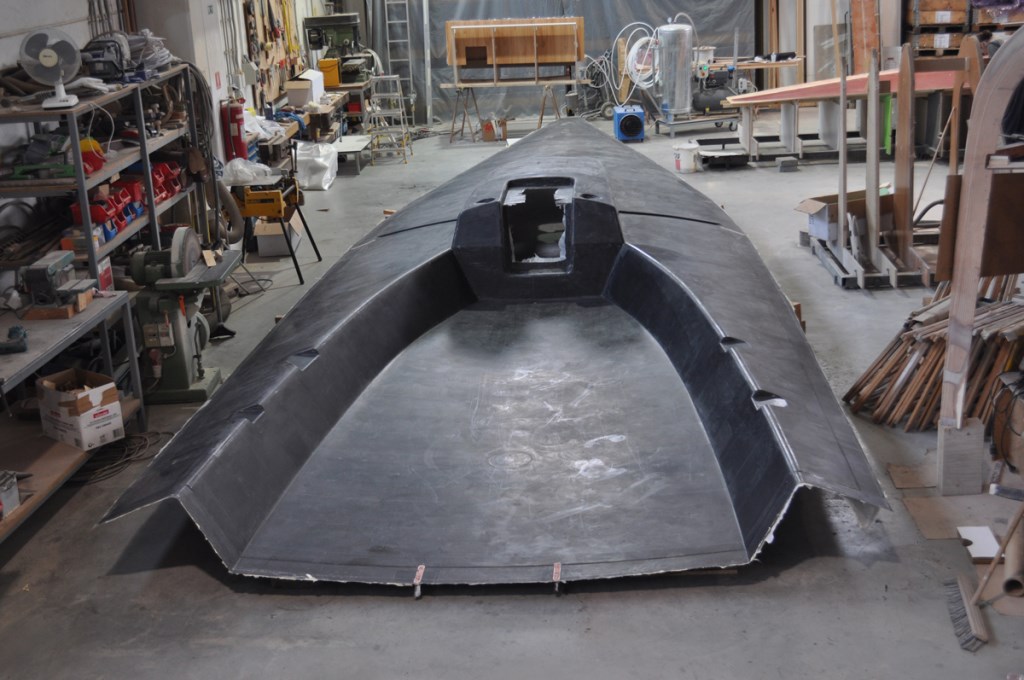

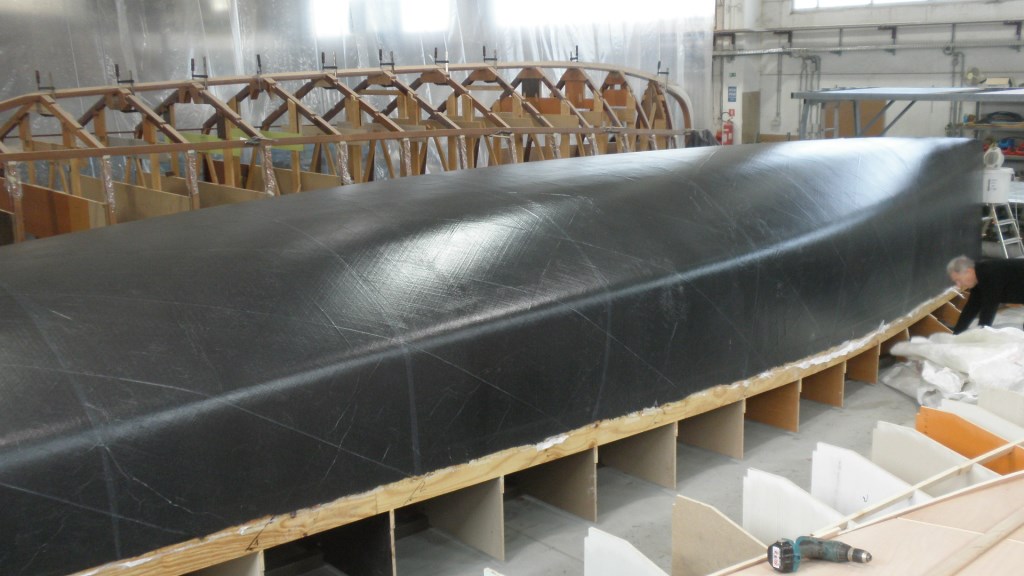

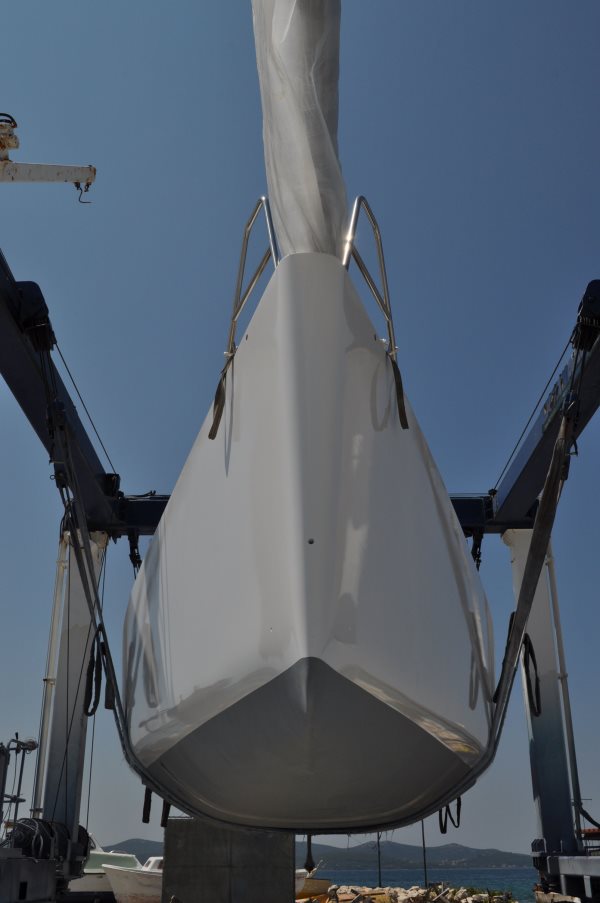

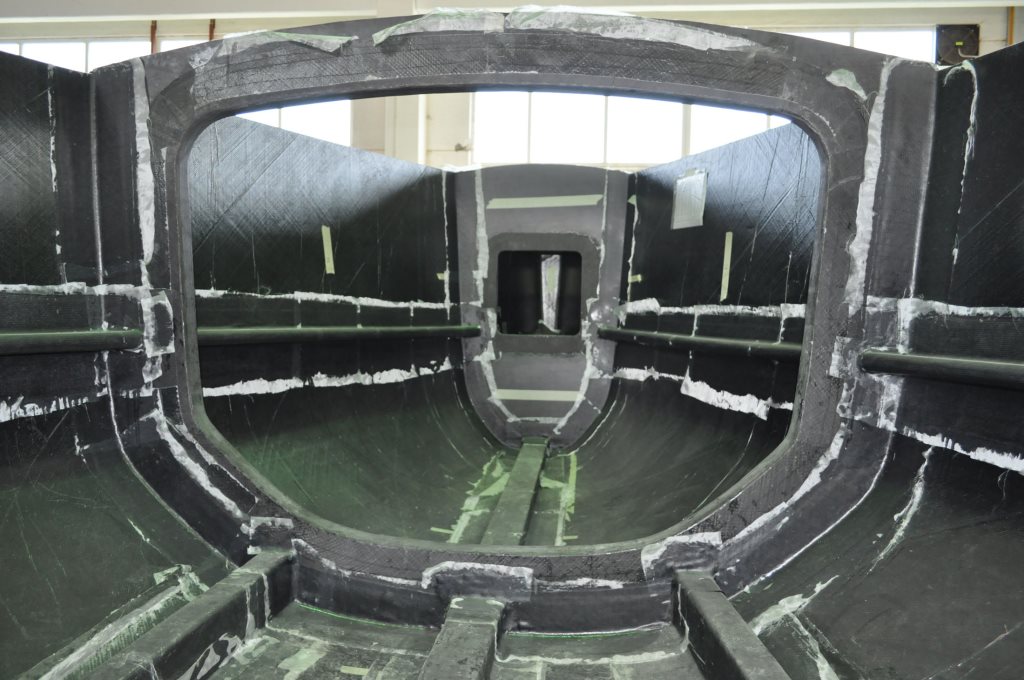

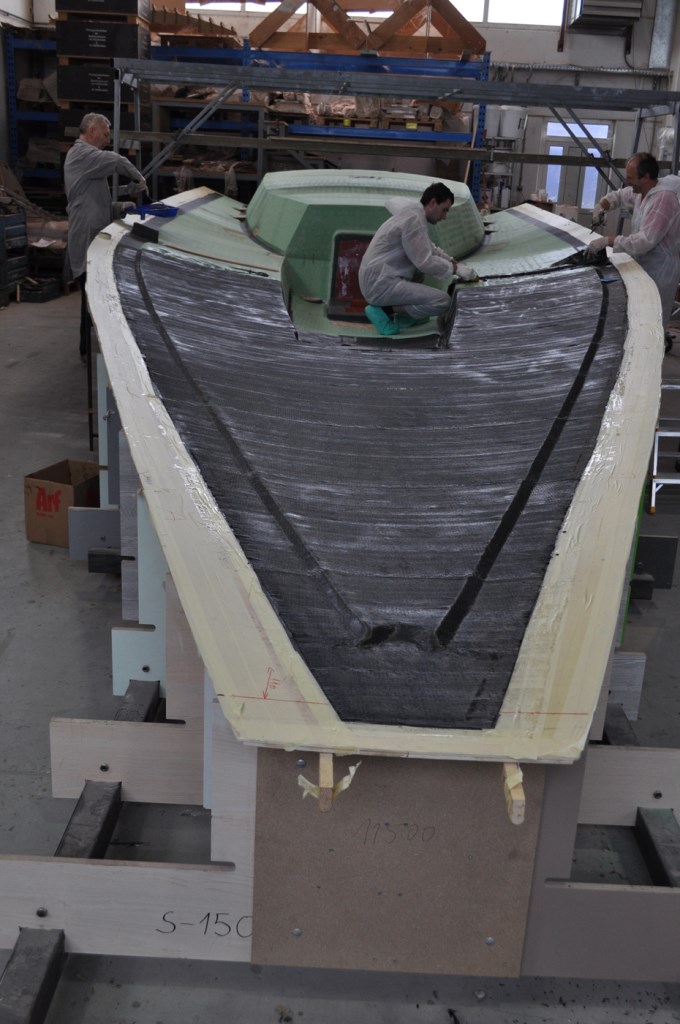

Hull is built in sandwich construction of CARBON fibres and RED CEDAR core all laminated with EPOXY resin in vacuum conditions. Basic hull inner and outer skin laminate is ±30° and ±90° UD carbon.

Structure

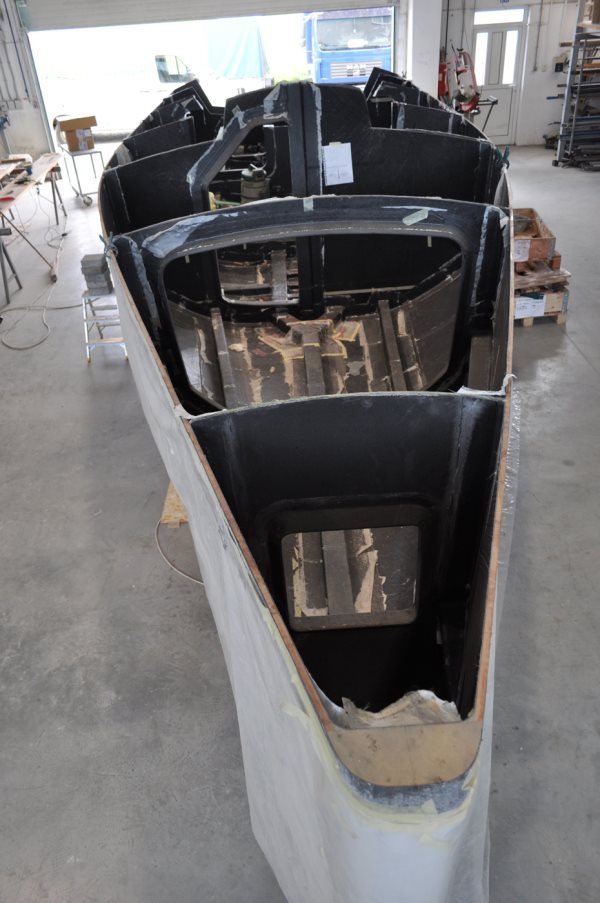

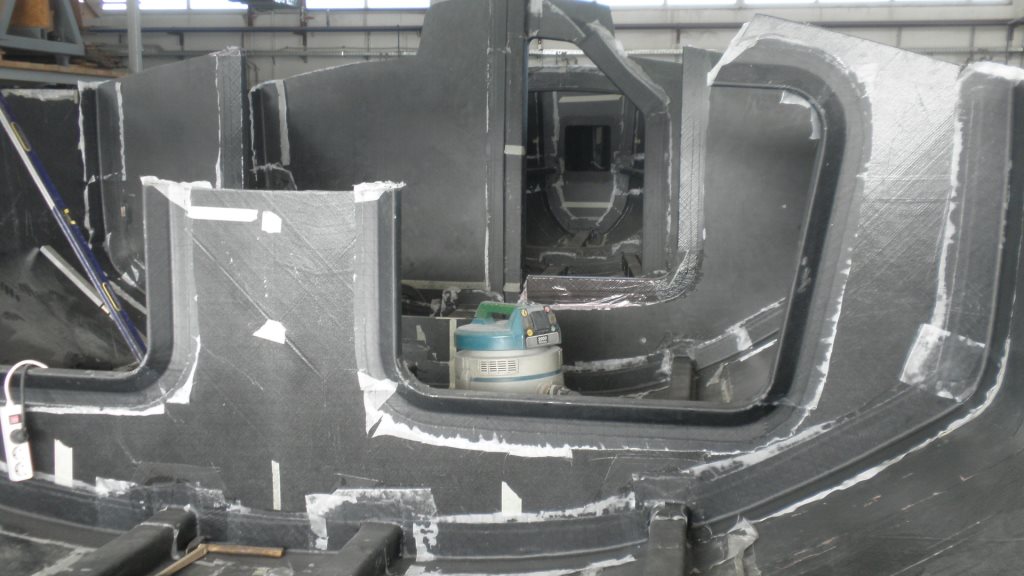

structural elements are built in sandwich construction of carbon fibres and pvc core all laminated with epoxy resin in vacuum conditions, UD carbon caping and chainplates.

Deck

sandwich construction of carbon fibres and pvc core all laminated with epoxy resin in vacuum conditions-local UD carbon reinforcements.

Rig

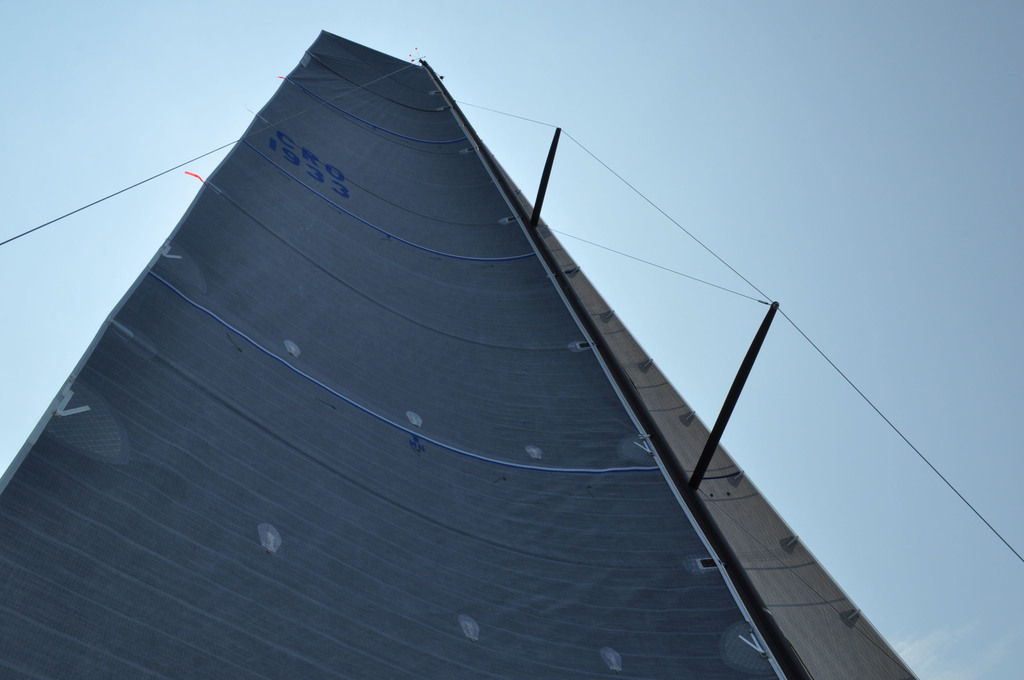

carbon mast, complete ROD system standing rigging, carbon boom and spreaders, carbon bowsprit.

Rudder

Rudder stock is in carbon. The two piece rudder blade is built in glass epoxy, The stock foil assembly is in mould by epoxy foam infusion.

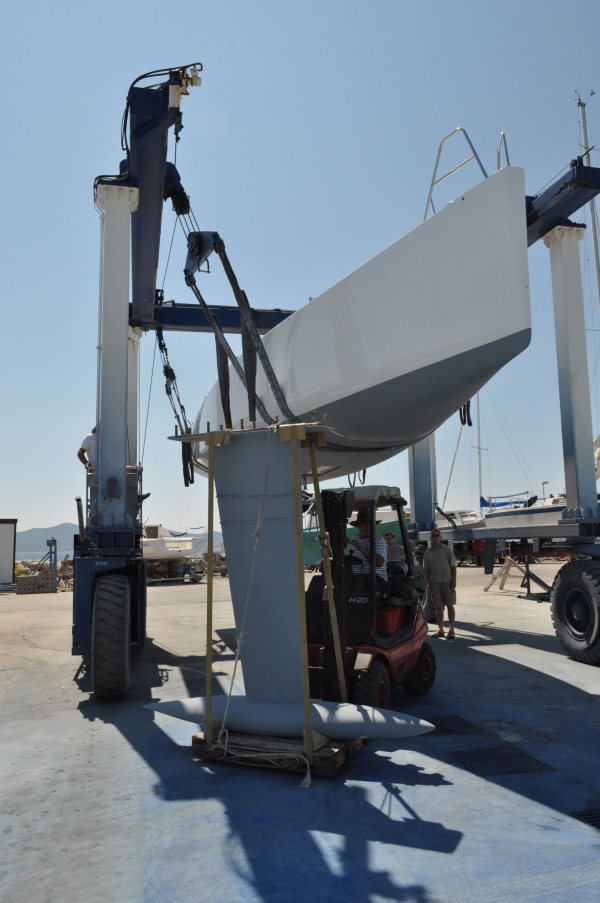

Keel

Keel structure is built in stainless steel. Keel foil is in glass epoxy. The structure foil assembly is in mould by epoxy foam infusion.

Bulb

Bulb is CNC machined lead-antimony with epoxy compound surface finish.

Structural design

The laminate plans for all the composite parts are designed according to the "ABS" loads and FEA optimized using "Nastran" software to achieve global and local structural balance and continuity through differential glass and carbon fibre weight and orientation.

Technology

Hull and deck are built using "Carbon epoxy Wet Layup Technology" in vacuum conditions and postcured in oven

Structural core

The core material for hull is lightweight wood (red cedar) – thickness 15mm.

The core material for deck and structural elements is "Airex". The core density (80-200 kg/m³) and thickness (10-25mm) are FEM optimized according to local construction loadings and core shear stress.

External finish

The deck and scoop walk upon surfaces are covered with high quality non skid film. The non skid film standard colour is clear.

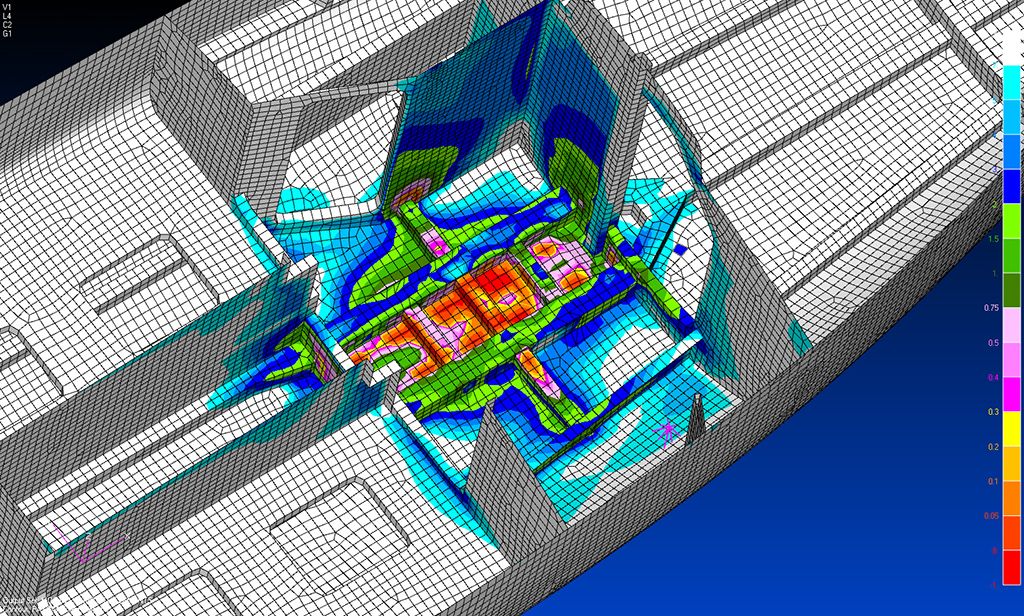

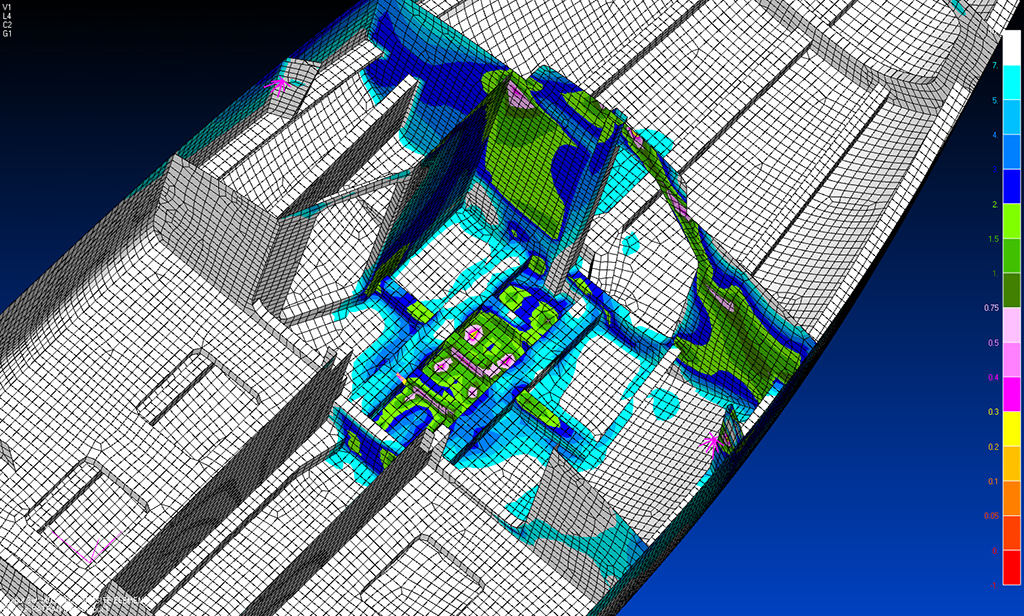

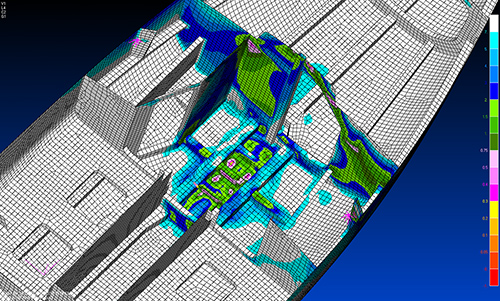

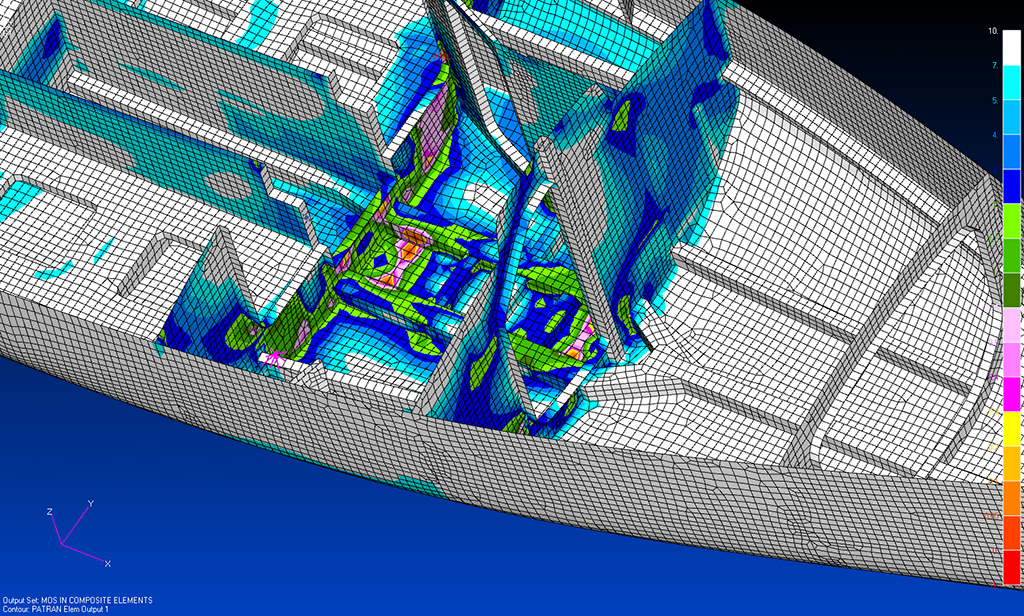

FEM analysis

Complete structure calculations was done using Finite Element Analysis (FEM). At the most stressed areas the safety factor is nowhere less than 5:

Grounding

Keel @ 90

Upwind

Equipment

Hardware

  • tracks and cars: Harken big boat
  • clutches: Spinlock
  • winches: 2x 40.2STA (main), 2x 46.2PTA (primary), 2x 40.2STA (halyard), 2x 40.2STA
  • (backstay) deflectors and thimbles: Kohlhof
  • blocks: Harken black magic

Engine

Yanmar 3YM20C Saildrive 20HP diesel engine

Propeller

Gori racing 2 blade folding propeller

Fuel

50 l

Interior

8 berths, central navigation console, mini galley and WC, water 100 l
